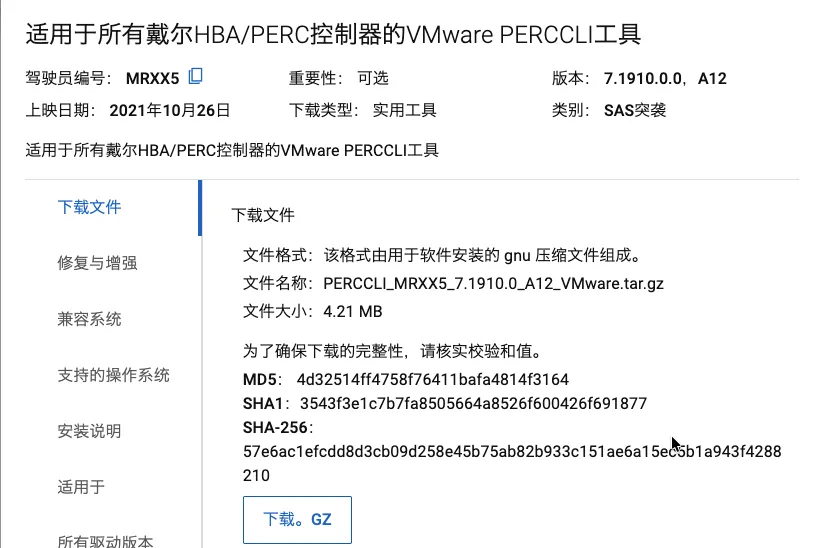

https://www.dell.com/support/product-details/en-us/product/poweredge-r730xd/drivers

下载并放入vmware7.0中（根据服务器实际安装的系统来定） 解压

解压后存在一个zip VMWare-perccli64_007.1910.zip

查看readme得知

2. For esx 7.x, To install the perccli, run following command:

                         esxcli software component apply -d <full path to perccli.zip file>

Note: VMWARE will only support 64-bit perccli vib from esxi 7.0 onwards.

压缩包要绝对路径

[root@localhost:~] esxcli software component apply -d /VMWare-perccli64_007.1910.zip
Installation Result
   Components Installed: BCM-vmware-perccli64_007.1910.0000.0000-01
   Components Removed:
   Components Skipped:
   Message: Operation finished successfully.
   Reboot Required: false
[root@localhost:~]

cd /opt/lsi/perccli64/

root@localhost:/opt/lsi/perccli64] ./perccli64 /c0/bbu show all >/1.txt
[root@localhost:/opt/lsi/perccli64] cat /1.txt
CLI Version = 007.1910.0000.0000 Oct 08, 2021
Operating system = VMkernel 7.0.3
Controller = 0
Status = Success
Description = None


BBU_Info :
========

----------------------
Property      Value
----------------------
Type          BBU
Voltage       11 mV
Current       0 mA
Temperature   43 C
Battery State Optimal
----------------------


BBU_Firmware_Status :
===================

-------------------------------------------------
Property                                   Value
-------------------------------------------------
Charging Status                            None
Voltage                                    Low
Temperature                                OK
Learn Cycle Requested                      Yes
Learn Cycle Active                         No
Learn Cycle Status                         OK
Learn Cycle Timeout                        No
I2C Errors Detected                        No
Battery Pack Missing                       No
Replacement required                       No
Remaining Capacity Low                     No
Periodic Learn Required                    No
Transparent Learn                          Yes
No space to cache offload                  No
Pack is about to fail & should be replaced No
Cache Offload premium feature required     No
Module microcode update required           No
-------------------------------------------------


GasGaugeStatus :
==============

-------------------------------------
Property                   Value
-------------------------------------
GasGauge StatusCode        0x238
Fully Discharged           N/A
Fully Charged              N/A
Discharging                N/A
Initialized                N/A
Remaining Time Alarm       N/A
Terminate Discharge Alarm  N/A
Over Temperature           N/A
Charging Terminated        N/A
Over Charged               N/A
Relative State of Charge   100%
Charger System State       Unknown
Remaining Capacity         475
Full Charge Capacity       475
Is SOH Good                Yes
Battery backup charge time 0 hour(s)
-------------------------------------


BBU_Capacity_Info :
=================

--------------------------------------
Property                 Value
--------------------------------------
Relative State of Charge 100%
Absolute State of charge 0%
Remaining Capacity       475 mAh
Full Charge Capacity     475 mAh
Run time to empty        Unavailable
Average time to empty    38 min
Average Time to full     Unavailable
Cycle Count              0
Max Error                0%
Remaining Capacity Alarm 0 mAh
Remaining Time Alarm     0 minutes(s)
--------------------------------------


BBU_Design_Info :
===============

--------------------------------
Property                Value
--------------------------------
Date of Manufacture     00/00/0
Design Capacity         460 mAh
Design Voltage          0 mV
Specification Info      0
Serial Number           0
Pack Stat Configuration 0
Manufacture Name        0x113
Device Name
Device Chemistry
Battery FRU             N/A
Transparent Learn       1
App Data                0
Module Version          0.4
--------------------------------


BBU_Properties :
==============

-------------------------------------------
Property             Value
-------------------------------------------
Auto Learn Period    90d (7776000 seconds)
Learn Delay Interval 0 hour(s)
Auto-Learn Mode      Transparent
-------------------------------------------



[root@localhost:/opt/lsi/perccli64]
